طراحی
میکسر مستغرق با موتور محرک مستقیم ، برای سرعت بالا ، مناسب برای عملیات مداوم یا متناوب.
کاربرد
قابل استفاده در مخزن ذخیره آب باران ، چاهک لجن ، مخازن اختلاط و یکنواخت سازی ، کاربرد های خاص
Conveying medium
For suspending and homogenizing in commercial
areas of process wastewater, wastewater with
feces, wastewater (with small amounts of sand and
gravel)
| Technical Data | Material |
|---|---|
| Mains connection: 3~400 V, 50 Hz | Motor housing: 1.4408 (ASTM A 351) or EN-GJL-250 (ASTM A48 Class 35/40B) |
| Media temperature: 3 … 40 °C (37 … 104 °F) | Seal housing: 1.4408 (ASTM A 351) |
| Operating mode, immersed: S1 | Sealing: Engine side: SiC/SiC or NBR (nitrile) Media side: SiC/SiC |
| Protection class: IP68 | Propeller: 1.4408 (ASTM A 351) |
| Insulation class: H | |
| Max. switching frequency: 15 /h | |
| Max. immersion depth: 20 m (66 ft) |
Design
Fast running, direct-drive submersible
motor agitator, for continuous or intermittent
operation
Application
Fast running, direct-drive submersible
motor agitator, for continuous or intermittent
operation

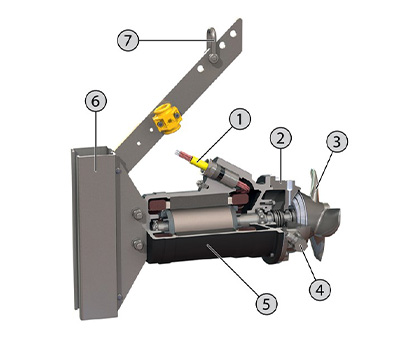

| Part | No. |
|---|---|
| Connection cable | 1 |
| Seal housing | 2 |
| Propeller | 3 |
| Pencil electrode (optional) | 4 |
| Motor | 5 |
| Frame for lowering device | 6 |
| Attachment point | 7 |
