طراحی
پمپ مستغرق فاضلابی با و بدون سیستم خنک کننده فعال برای کارکرد مداوم به صورت نصب در چاله های خشک و مرطوب.
کاربرد
مناسب برای پمپاژ فاضلاب تصفیه نشده حاوی فضولات انسانی و اجزای دارای الیاف بلند و فاضلاب پیش تصفیه شده بدون فضولات انسانی و اجزای حاوی الیاف بلند و آب فرآیندی.
| Equipment / function |
|---|
| Heavy-duty version made of gray cast iron |
| Surface-cooled motor or self-cooling motor with 1-chamber or 2-chamber system |
| Optionally with Ex protection in accordance with ATEX or FM |
| Motor-dependent monitoring devices: Winding temperature Moisture monitoring in the sealing chamber and motor/ terminal room Motor bearing temperature |
| Installed accessories according to customer requirements |
Design
Submersible sewage pump with and without
active cooling system for continous duty in
, the stationary and portable wet well installation
.as well as for stationary dry well installation
Application
Pumping of untreated sewage with feces and
long-fiber components, Sewage containing feces,
Pre-cleaned sewage without feces and long-fiber
components, Process water, Wastewater
| Technical Data | Material |
|---|---|
| Mains connection: 3~400V, 50Hz | Housing components: EN-GJL or EN-GJS |
| Submerged operating mode: S1 | Impeller: EN-GJL or EN-GJS |
| Non-immersed operating mode: S1 or S2 | Static gaskets: NBR or FPM |
| Protection class: IP68 | Fluid-side seal: Mechanical seal made of SiC/SiC |
| Insulation class: H | Seal on the motor side: Rotary shaft seal NBR |
| Fluid temperature: 3…40 °C, higher temperatures on request | Mechanical seal made of SiC/SiC or carbon ceramic |
| Free ball passage of 45…130 mm | Shaft: Stainless steel 1.4021 |
| Max. immersion depth: 20 m | |

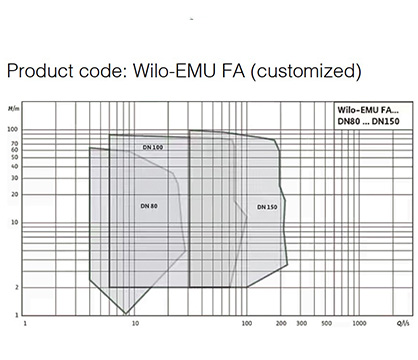

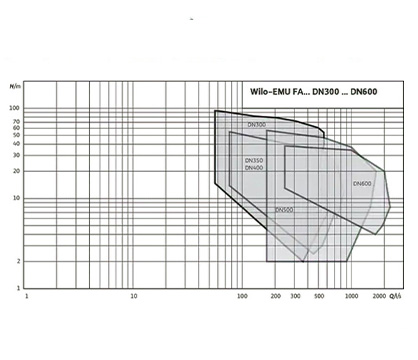

Pressure Connection
DN80 – DN600
